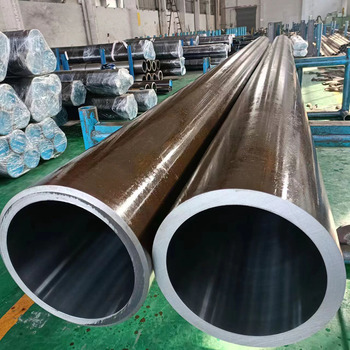

SAE 1020 Seamless Honed Tube

SAE 1020 Seamless Honed Tube is a type of precision-engineered tubing made from SAE 1020 carbon steel. It is widely used in various industrial applications due to its excellent mechanical properties, durability, and precision. The honing process further enhances the tube’s surface finish and dimensional accuracy, making it suitable for applications requiring tight tolerances and smooth surfaces.

Advantages

1. High Strength and Durability :Suitable for heavy-duty applications.

2. Smooth Surface Finish: Reduces friction and wear, enhancing the lifespan of components.

3. Cost-Effective: SAE 1020 steel is relatively inexpensive compared to alloy steels, making it a cost-effective choice for many industries.

4. Seamless Construction: The seamless nature of the tube ensures uniformity and reliability in high-pressure applications.

5. Versatility: Suitable for a wide range of applications, including hydraulic cylinders, pneumatic cylinders, and precision engineering components.

SAE 1020 MATERIAL COMPOSITION:

Carbon (C): 0.18–0.23%

Manganese (Mn): 0.30–0.60%

Phosphorus (P): ≤ 0.040%

Sulfur (S): ≤ 0.050%

Iron (Fe): Balance

SAE 1020 MECHANICAL Properties:

Tensile Strength: ~420 MPa

Yield Strength: ~350 MPa

Elongation: ~15%

Delivery Condition: SR,BK, BK+S, GBK, NBK

ID Size : 20mm – 1500mm

Length: max 16m

Type: Seamless, Hot Rolled, Cold Rolled, Cold Drawn

Straightness: ≤ 0.5/1000

Roughness: 0.2-0.4 u

Tolerance INT: H7,H8,H9

Protection: Anti-rust oil on inside and outside surface, plastic caps in both ends.

Packing: Bundle with steel strip and PE sheet or Plywood case
